Why Choose an Electrical Cable Tray?

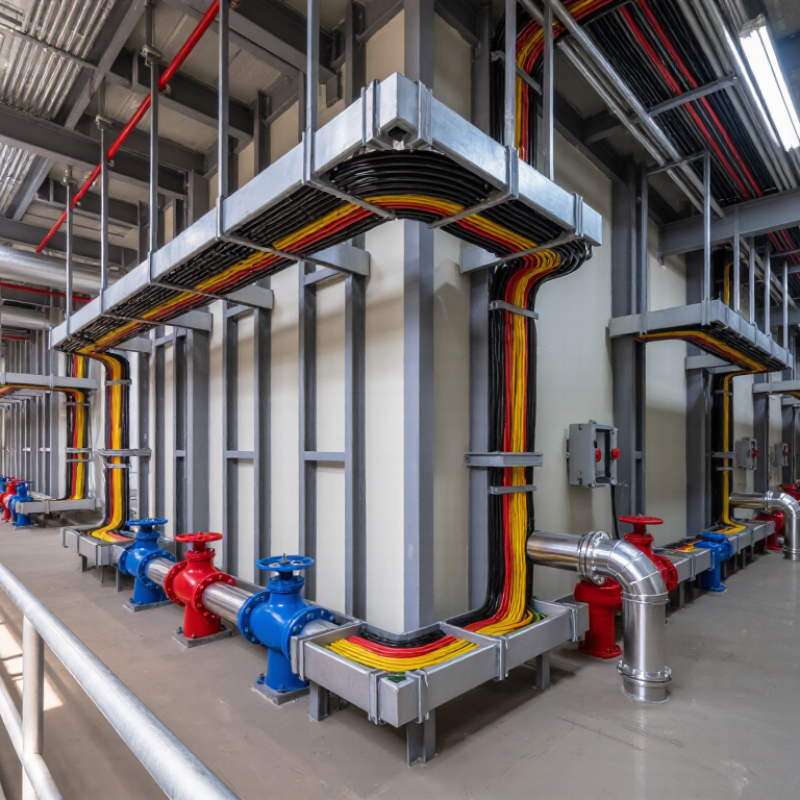

Choosing an electrical cable tray is not merely a matter of keeping wires off the floor. It shapes how a building handles power, maintenance, and future changes. In a plant room, technicians may need to trace a cable past pumps, valves, and steel beams. A well-planned tray route can make that work more visible and accessible. It can also reduce dependence on enclosed conduit runs, though it does not remove the need for careful design.
A guiding line for this article is: “A good tray route supports the cables today and leaves room for the next change.” This is an editorially composed principle, not a verified quotation from a named industry expert. It captures a practical trade-off: tray selection depends on cable load, span, environment, support spacing, and access needs. A ladder-style tray may suit heavier runs or ventilation needs. A solid-bottom option may be preferable where greater cable protection is needed. Details matter.
There is no universal best tray. Harsh conditions, tight ceilings, or future expansion can change the answer. Even a tidy installation can become difficult to service if the route is crowded or poorly supported. This overview explores why designers choose an electrical cable tray, what advantages it can offer, and which project details deserve a second look before installation. The aim is practical: make the cable path easier to inspect, adapt, and maintain over time.
What Is an Electrical Cable Tray?
An electrical cable tray is a support system for routing and organizing insulated cables. It is usually made from metal or nonmetallic material and installed along walls, ceilings, or structural steel. Ladder trays have side rails and crossbars, while perforated trays offer a more continuous base. Solid-bottom trays provide greater coverage. The right style depends on cable type, load, location, and access needs.
Tips: Check the planned cable weight and tray capacity. Leave room for future additions, but avoid overcrowding. Keep bends gentle, and confirm support spacing and bonding requirements with a qualified electrical professional.
A tray is not simply a shelf. It helps keep cables orderly and accessible for inspection or changes. In a workshop, for example, a well-planned route can keep cables clear of walkways and equipment. Still, a drawing may look neat while the finished route feels cramped. Review obstacles, heat sources, and maintenance access before installation. Material choice matters too: moisture, chemicals, and corrosion can affect long-term performance. Follow applicable electrical requirements for the installation.
How Electrical Cable Trays Organize and Support Cables
Why Choose an Electrical Cable Tray?
How Electrical Cable Trays Organize and Support Cables
An electrical cable tray provides a defined route for power and control cables, keeping them off floors and away from scattered equipment. Its open sides make individual runs easier to identify, inspect, and replace. That matters in a crowded plant room, where a hidden cable can turn routine troubleshooting into guesswork. The tray also supports cable weight along a planned path, reducing unsupported spans and strain at connections. Details still matter: sharp edges, tight bends, or poorly placed supports can damage jackets.
Tray capacity is not a visual estimate. NFPA 70 (2023), Section 392.22(A), sets a 50% cross-sectional-area limit for multiconductor cables in specified ladder-tray configurations; other configurations have different requirements. NEMA VE 2-2013 also advises installers to follow the tray manufacturer’s recommended support spans. These references help engineers plan for cable quantity, loading, and future additions. A practical layout leaves usable room for maintenance, not just today’s cables. It is easy to overfill a tray when the drawings look tidy. Check actual cable diameters, bend radii, and support locations before installation.
Which Types of Electrical Cable Trays Are Available?
Why Choose an Electrical Cable Tray?
Which Types of Electrical Cable Trays Are Available?
Ladder trays use two side rails joined by rungs. Their open design allows airflow and makes cable inspection straightforward. They are often considered for heavier cable runs, but support spacing and load capacity still need careful checking. A ladder tray can look right on paper and still frustrate installers if access is cramped.
Perforated trays have a continuous base with holes or slots. They provide more cable support than ladder trays while allowing some ventilation. Solid-bottom trays offer a smoother, more enclosed base, which can help keep out falling debris. However, they provide less airflow, so heat and moisture deserve attention. Wire-mesh trays are lightweight and easy to adapt around bends. They suit accessible routes, though they may not be right for every cable weight. Channel trays work for short runs or small groups of cables. Simple, but limited.
The choice depends on the route, cable weight, environment, and future access. In a dusty area, a solid base may help; in a warm space, an open design may be preferable. Check fill, span, bend radius, and support requirements against the project specifications. The trade-off is easy to miss: extra protection can reduce ventilation, while an open tray can leave cables more exposed. Which detail matters most may only become clear after the route is inspected.
What Are the Main Benefits of Choosing a Cable Tray?
Why Choose an Electrical Cable Tray?
What Are the Main Benefits of Choosing a Cable Tray?
Cable trays support and organize power and control cables along walls, ceilings, and equipment lines. Their open design makes cable routes easier to inspect and lets technicians add or replace runs without opening long sections of conduit. In busy plant rooms, that can mean quicker fault tracing and less disruption. Air can also circulate around cables, though correct spacing and fill still matter. NEMA VE 1-2017, the Metal Cable Tray Systems standard, lists load classes from 5A to 25A lb/ft. This gives designers a tested framework for matching tray capacity to cable loads and support spans, rather than choosing by appearance alone. Access matters.
Tips: Check cable weight, span, fittings, and future capacity before installation. Keep power and sensitive signal cables separated where required, and follow the applicable electrical code and manufacturer instructions. A tray is not automatically the cheapest or best route: corrosive areas, tight spaces, or poor support planning can make maintenance harder. Measure twice. Real sites change, and spare capacity is easy to underestimate.
How to Select a Cable Tray for an Installation?
Why Choose an Electrical Cable Tray? How to Select a Cable Tray for an Installation?
Choose a tray around the cables, route, and working conditions—not just the purchase price. Start with cable type, outside diameter, weight per meter, and expected future additions. Add the cable loads, then compare them with the tray’s rated load at the planned support span. NEMA VE 2-2018 installation guidance and IEC 61537:2006 both address installation and performance considerations; neither makes one tray suitable for every route. Check the manufacturer’s load-span data for the exact tray material, width, and rung spacing. Small differences matter.
Next, inspect the site. A damp washdown area may call for corrosion-resistant material, while a hot space can affect cable ratings and support choices. Measure bends, tees, and vertical drops; a tray that fits a straight corridor may crowd a ceiling turn. Keep separation from heat sources and other services where project rules require it. Leave practical room for pulling cables and later maintenance. Clearances are often overlooked.
Also review grounding and bonding requirements, fire barriers, and applicable electrical codes with a qualified designer. Record assumptions, especially spare capacity and environmental exposure, so installers can check them on site. One judgment call remains: planned expansion is easy to overestimate. Size for a credible next phase, not every cable someone might someday imagine.
Why Choose an Electrical Cable Tray?
Compare common tray styles against practical installation priorities. Scores show relative planning suitability on a 1–5 scale, not standardized performance ratings.
How to select: Ladder and wire-mesh trays support airflow and easy cable access; perforated trays offer a balance of ventilation and coverage; solid-bottom trays provide greater protection from falling debris. Confirm cable loading, support spacing, bend radius, environment, and applicable code requirements for the specific installation.
